Product Description

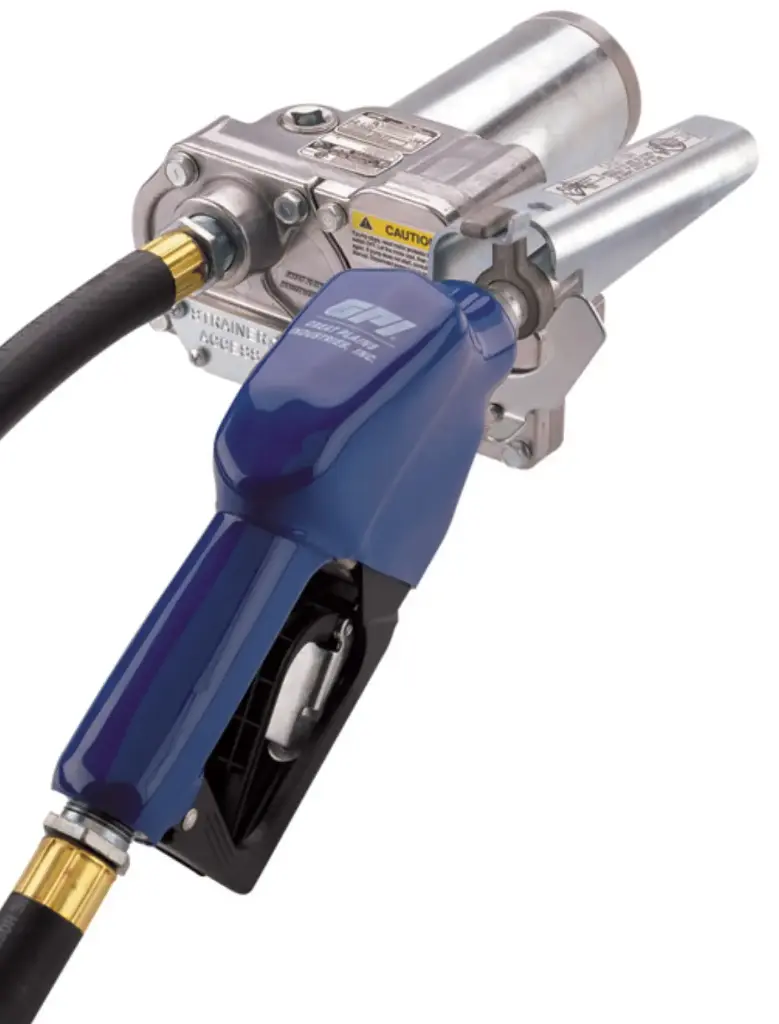

GPI 12V Fuel Transfer Pump: Fast, Reliable Fuel Transfer for Trucks, Fleets, and Farms
The GPI 12V Fuel Transfer Pump moves gasoline, diesel, and kerosene quickly and safely for contractors, fleet operators, and farm operations that need fuel on demand in the field. Each pump runs on a 12V DC motor with an automatic unleaded nozzle, a dispensing hose, and an adjustable telescoping suction pipe, so it is ready to draw from a tank and dispense with minimal setup. American Truckboxes stocks GPI pumps as a resale item, distributed through truckbox.com alongside our own truck accessory line. Choose the configuration that matches your flow-rate needs and add a particulate filter if you are fueling equipment that is sensitive to contamination.
Key Features
- Moves fuel fast: 12V DC motor delivers flow rates up to 18 GPM or 25 GPM depending on model, so tanks fill in minutes instead of sitting on a slow hand pump
- Ready to run out of the box: includes an automatic unleaded nozzle, dispensing hose, 18 ft. power cord, and adjustable telescoping suction pipe
- Mounts where you need it: convenient spin collar design allows versatile mounting and easy installation on a tank or tote
- Protects the motor: built-in overload protection extends motor life under repeated use
- Certified for safety: motor is UL listed and CSA certified
- Self-priming operation: no manual priming required before each use
- Built-in bypass valve: protects the pump from pressure buildup during operation
- Lightweight yet durable: aluminum construction keeps the unit portable without sacrificing durability
- Filtered option available: the /Filler/Filter configuration adds a particulate filter with 10-micron nominal filtration to help protect fueled equipment from contamination
Specifications
18 GPM models (M-180S-AU/Filler and M-180S-AU/Filler/Filter): Flow rate 18 GPM, 1/5 HP motor, 187 watts, 20 amps, 2,000 RPM, 1 in. inlet/outlet ports, 1 in. x 12 ft. hose, 30 min. on / 30 min. off duty cycle, max suction lift 4-4/5 ft., max total head 15 ft., ship weight approximately 28-31 lbs.
25 GPM model (V25-012AD-AU/Filler): Flow rate 25 GPM, .41 HP motor, 1 in. x 18 ft. hose, ship weight approximately 60 lbs.
Nozzle Type: Automatic unleaded | Seal Type: Nitrile | Self-Priming: Yes | Bypass Valve: Built-in
This is a genuine GPI pump distributed by American Truckboxes, not an ATB-manufactured product. Manufacturer's warranty coverage is 24 months parts and 24 months labor. For help choosing between the 18 GPM and 25 GPM models, or to ask about fleet quantity pricing, contact truckbox.com or call (888) 996-0376.
Frequently Asked Questions
Q: Is this pump made by American Truckboxes?
A: No. This is a genuine GPI (Great Plains Industries) fuel transfer pump. American Truckboxes stocks and sells it as a resale item alongside our own manufactured truck toolboxes. You can order it through truckbox.com or by calling (888) 996-0376.
Q: What warranty comes with this pump?
A: GPI backs this pump with a manufacturer's warranty of 24 months parts and 24 months labor. For warranty claims or questions, contact truckbox.com or call (888) 996-0376.
Q: What is the difference between the 18 GPM and 25 GPM models?
A: The 18 GPM models (M-180S-AU/Filler and M-180S-AU/Filler/Filter) use a 1/5 HP motor and a 12 ft. hose, built for lighter-duty fuel transfer. The 25 GPM model (V25-012AD-AU/Filler) uses a stronger .41 HP motor and an 18 ft. hose for faster transfer on larger tanks. Choose the 25 GPM model if you regularly move larger volumes of fuel.
Q: What is the difference between the Filler and Filler/Filter versions of the 18 GPM pump?
A: The M-180S-AU/Filler/Filter adds a particulate filter with 10-micron nominal filtration that removes contaminants from fuel before it reaches your equipment. Choose the Filler/Filter version if you are fueling equipment that is sensitive to fuel contamination.
Q: What fuels can this pump handle?
A: These GPI pumps are rated for gasoline, diesel fuel, and kerosene. Do not use them for fuels or fluids they are not rated for.
Q: Does the pump come with everything needed to install it?

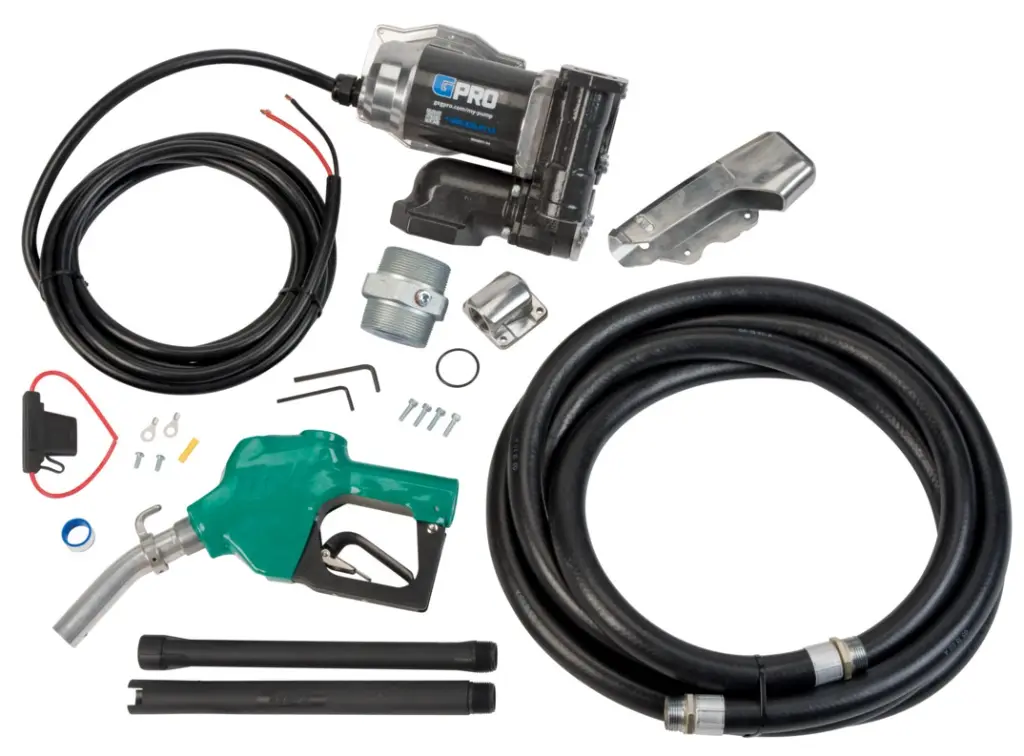

A: Yes. Each pump ships with the pump and power cord, an automatic unleaded nozzle, a dispensing hose, a telescoping suction pipe, an installation kit, and a hardware kit.
Q: How is the pump powered and how is it mounted?

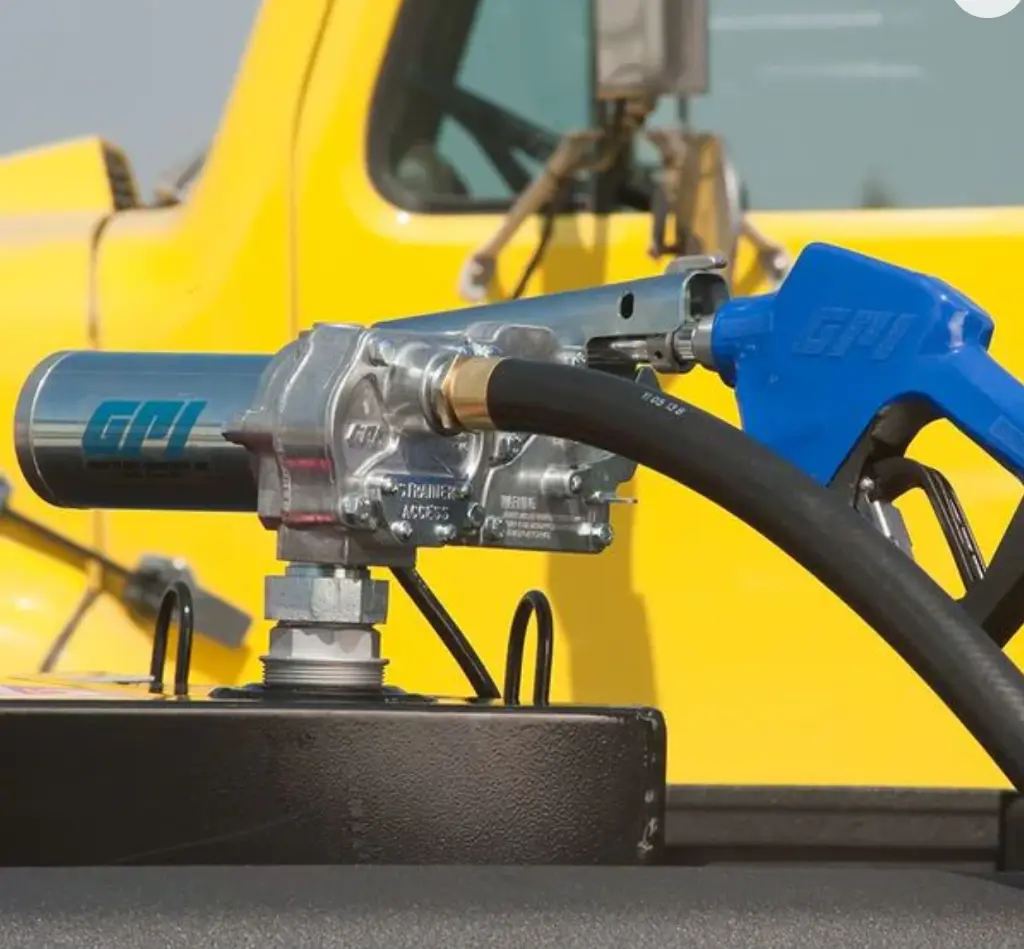

A: The pump runs on a 12V DC motor with an 18 ft. power cord for connection to a 12V power source. A convenient spin collar design allows versatile mounting on a tank or tote for easy installation.
