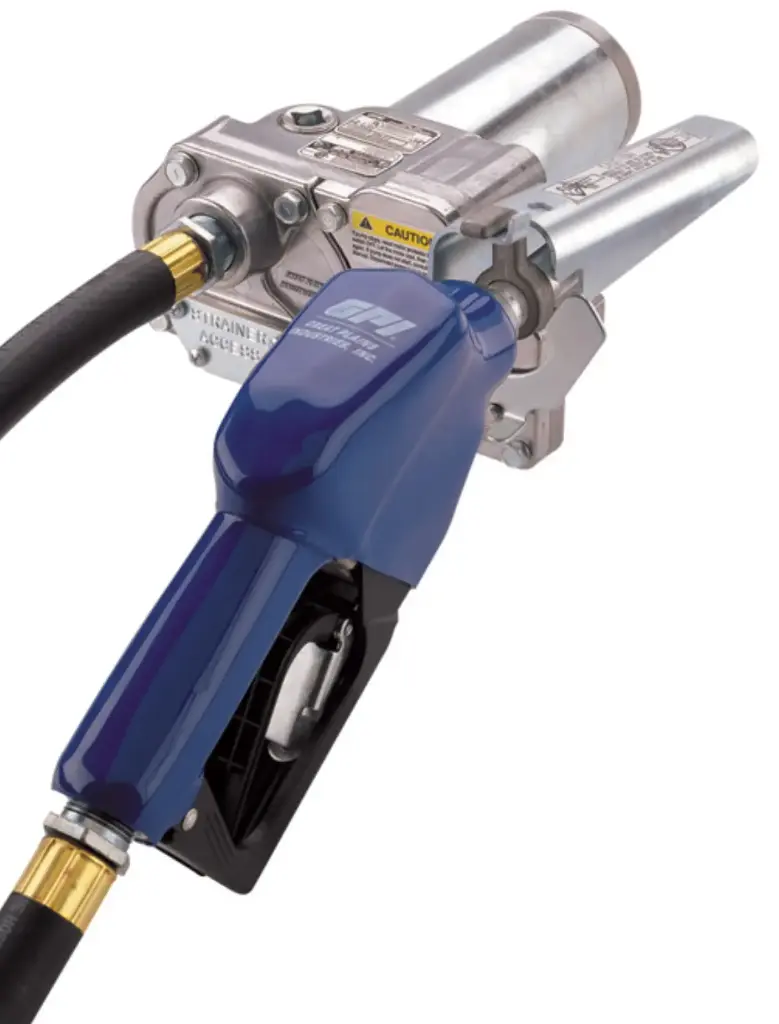

GPI 12V Fuel Transfer Pump M-180S-AU/Filler - 18 GPM - 1/4 HP - 2000 RPM - Automatic Nozzle & 12' Hose
Part Number:
TPG-18-12-AA
Product Description
GPI® Transfer Pump with Filter and High-Flow Auto Nozzle delivers gasoline, diesel fuel and kerosene at flow rates of up to 18 GPM.
The pump includes a particulate filter with 10 micron nominal filtration to remove particles from fuel which helps prevent damage to equipment being fueled.
Motor is UL listed and CSA certified.
Description Sheet: www.truckbox.com/images/PDF21/C-Page 69.pdf
|
Specifications: | |
|
Manufacturer's Warranty |
24 months parts / 24 months labor |
|
Ship Weight |
30.3 lbs |
|
Flow (GPM) |
18 |
|
Amps |
20 |
|
Max. Suction Lift (ft.) |
4 4/5 |
|
Max. Total Head (ft.) |
15 |
|
HP |
1/5 |
|
Watts |
187 |
|
Speed (RPM) |
2,000 |
|
Inlet Port (in.) |
1 |
|
Outlet Port (in.) |
1 |
|
Discharge (ft.) |
12 |
|
Duty Cycle |
30 min. on/30 min. off |
|
Self-Priming |
Yes |
|
Bypass Valve |
Built-in |
|
Seal Type |
Nitrile |
|
Nozzle Type |
Automatic unleaded |
|
Hose (in. x ft.) |
1 x 12 |
|
Dimensions L x W x H (in.) |
19 x 16 x 9 |
A D -
Included with Package:
Fuel Transfer Pump with Power Cord -
Features:
2. Includes ¾” automatic unleaded nozzle, 12’ dispensing hose, 18ft. power cord, and adjustable telescoping suction pipe
3. Convenient spin collar design provides versatile mounting and easy installation
4. Overload protection extends motor life
5. Lightweight yet durable aluminum construction
Pump Manual: http://www.truckbox.com/images/PDFD/GPI-PManual.pdf
