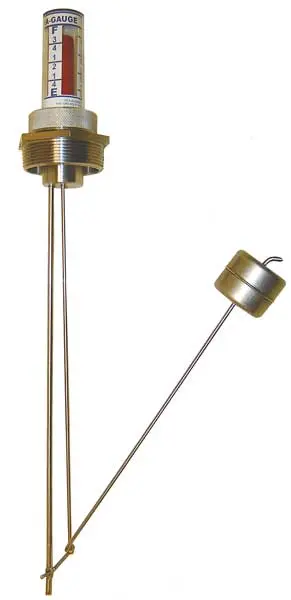

Krueger - Therma Level Gauge for 26" Tank Depth x 1.5" NPT

Krueger - Therma Level Gauge for 26" Tank Depth x 1.5" NPT

Therma Level Gauge, Tank, Drum Capacity Generic, Tank Depth 26 In., Extension Length 0, Connection Size 1.5", Calibration Unit Material Plastic, Calibration Unit Increments 1/8 of a Tank, Gasket Material Duro Nitrile, Bushing Material Aluminum, Assembly Nut Material HDPE Plastic, Rod Material Galvanized Steel, Rivet Material Brass, Float Material HDPE Plastic, Float Dia. 1.125 In, Temp. Range -20 to 120 Degrees F, Pressure Rating 70 psi, Manufacturers Warranty Length 1 Year

For Installation Instruction see our Installation Catalog above.
